ARM9 400MHz HMI Control Panel CPU Free Port Communication Protocol WINCE 5.0

Shenzhen Coolmay Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ARM9 400MHz HMI Control Panel CPU Free Port Communication Protocol WINCE 5.0

  • 1
  • 2
  • 3

Brand Name : Coolmay

Model Number : MT6050H

Certification : CE

Place of Origin : Shenzhen

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100,000 pcs per month

Delivery Time : 3-8 working day

Packaging Details : Packed with standard carton box

Touch type : 4-wire resistive panel

Display color : 65536 true colors

Operating system : WINCE 5.0

CPU : ARM9 core 400MHz

ROM : 128MB

RAM : 64MB

Consumption : 150mA*24V

Protection Class : IP65 (front panel)

Contact Now

HMI Control Panel ARM9 Core 400MHz CPU Free Port Communication Protocol

Database storage function:

In the software version of CoolMayHMI V5.81 (internal GUIRun V5.81) and higher version, modify the default data storage function (record buffer / alarm database) of the hmi and hmi/plc all-in-one (hmi part) to be stored in the SD card. If there is no optional SD card (which cannot coexist with the built-in USB 2.0 port), it means that there is no storage function by default. If you need to use the storage function, you need to change the HMI database storage selection to RAM (U disk. Backup suppression ** minutes), and the external file system is U disk in FAT32 format.

Parameter:

Specs

Dimension

146*88*25mm

Cutout size

135*72mm

Display size

108*65mm

Weight(kg)

Appox. 0.33 kg

Display

Display

5” TFT

Resolution

(pixels)

800*480

Brightness

300cd/m²

Contrast ratio

400:1

Backlight

LED

Backlight time

60,000 h

Display color

65536 true colors

Touch type

4-wire resistive panel

Storage

ROM

128MB

RAM

64MB

CPU

ARM9 core 400MHz

Operating system

WINCE 5.0

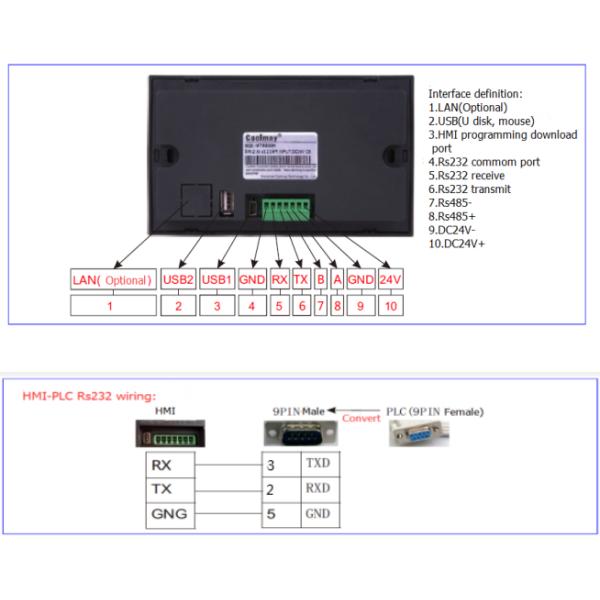

Interface

USB port

USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.)

Download port

Yes (Mini type B male port cable for program download

Ethernet port

Optional

COM port

1 RS232 and 1 RS485

Protocol

Support MODBUS, free port and common PLC communication Protocol

Audio

Optional

Calendar

Yes

Input Voltage

Default as DC12~24±10%V

Consumption

150mA*24V

Protection Class

IP65 (front panel)

Temperature

Ambient environment: 0~50℃ | Storage environment: -20~70℃

Humidity

20%~90% RH

Certification

CE

Software

Coolmay HMI programming software

Main features:

ARM9 400MHz HMI Control Panel CPU Free Port Communication Protocol WINCE 5.0

  • Provides vector galleries and supports self-built gallery

  • Resistive touch panel with high precision and reliability

  • Supports any-format static images and GIF animation

  • Supports all fonts in Windows

  • 60,000 TFT true color display

  • Optional data storage function, you need to select U disk storage in the HMI software, and the hardware USB

  • interface requires an external USB drive (SD card storage is optional, and cannot coexist with U disk storage)

  • MT60 series support date import or export and program downloading by USB drive

  • Default RS232 and RS485 port, support multiple protocols

  • MT60 series supports vertical display

  • Network port, audio or CAN port is optional

  • Gray, gold, or silver panel is optional, black or white bottom shell is optional

  • Supports wall mounted, and can be used in home automation or industrial control
